2023 Dec24: IIT M FN EXAM FDD1 - 24 Dec 2023

MLP End Term38 questions100 marks22 MCQ · 11 MSQ · 5 SAforenoon

Elapsed 00:00

Q1MCQ2 marks

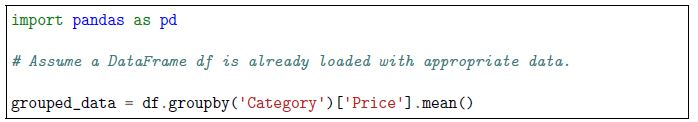

Consider the following Python code using Pandas: question figure

Consider the following Python code using Pandas: What does the groupby operation in the code achieve?

It calculates the total price for each category.
It calculates the average price for each category.
It groups the data by the ’Category’ column.
It filters out rows where the ’Price’ column is zero.

Q2MCQ2 marks

Q3MCQ2 marks

Which of the following metrics indicate higher their value, better the regression model’s performance?

RMSE
R2
Mean absolute error
Mean squared error

Q4MCQ2 marks

Which of the following variations of gradient descent can be implemented with SGDClassifier?

stochastic gradient descent
mini gradient descent
full batch gradient descent
None of these

Q5MCQ2 marks

Consider the Ridge regression model in scikit-learn, represented by the Ridge class. Which of the following statements about Ridge regression is correct?

Ridge regression is designed to handle class imbalance of the dataset.
The regularization term in Ridge regression is added to the sum of absoluteresiduals.
Increasing the value of the regularization parameter (alpha) in Ridgeregression makes the model less sensitive to high-magnitude coefficients.
Ridge regression is equivalent to Lasso regression when the regularizationparameter (alpha) is set to zero.

Q6MCQ2 marks

Which of the following method is used to estimate the probabilities in SGD-Classifier with suitable loss?

Q7MCQ2 marks

Faster to compute the list of neighbors on scaled data.
k-nearest neighbors is based on computing some distances. Features need tobe normalized to contribute approximately equally to the distance computation.
Scaling the data has a negligible effect on k-nearest neighbor’s performance,but it enhances the interpretability of the model.
This is irrelevant. One could use k-nearest neighbors without normalizing thedataset and get a very similar cross-validation score.

Q8MCQ2 marks

When using CountVectorizer in scikit-learn, what does the max_features parameter control?

The maximum number of documents considered during vectorization.
The maximum number of features (words) to be extracted based on termfrequency.
The maximum number of randomly selected features (words).
The maximum number of characters allowed in each document.

Q9MCQ2 marks

Which of these may NOT help in handling overfitting in decision trees?

Increasing the value of min_samples_split
Increasing the value of the pruning parameter
Increasing the value of min_samples_leaf
Increasing the depth of the tree

Q10MCQ2 marks

Which of the following is/are Clustering Method.

Connectivity-based Clustering
Centroids-based Clustering
Density-based Clustering
All of them

Q11MCQ2 marks

You’re working with a large image and want to group similarly coloured segments in the image together. No other information is provided with the image. Which of the following techniques will you use to accomplish the task?

Supervised learning
Unsupervised learning
Reinforcement learning
None of these

Q12MCQ2 marks

logistic
relu
identity
tanh

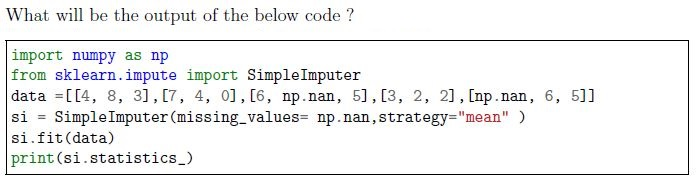

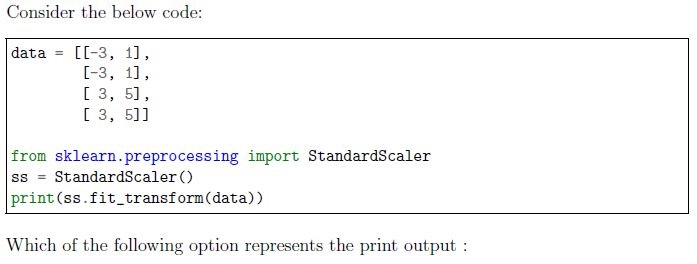

Q13MCQ3 marks

[5, 5, 3.75]
[5, 5, 3]
[4, 4, 3]
[4, 4, 3.75]

Q14MCQ3 marks

Q15MCQ3 marks

Which of the following code snippets represent correct methods to obtain cross validated performance measure using LeaveOneOut?

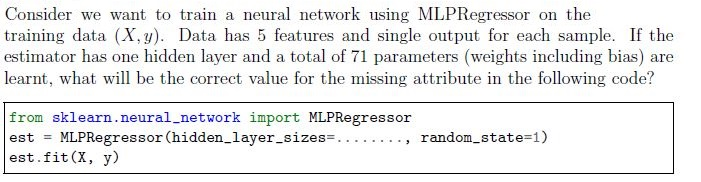

Q16MCQ3 marks

(71)
(71, 1)
(10)
(10, 2)

Q17MCQ3 marks

You’re building an ‘MLPClassifier‘ for a dataset with a large number of features. The goal is to predict whether a patient is going to have parkinson disease in next 12 months. You’re trying to decide the appropriate number of neurons in the hidden layers of the neural network. Which statement about adjusting the hidden_layer_sizes parameter is correct?

Increasing the number of neurons in hidden layers will always lead to bettermodel performance.
Decreasing the number of neurons in hidden layers reduces the model’scapacity to capture complex patterns.
The number of neurons in hidden layers does not significantly affect themodel’s performance.
Finding the optimal number of neurons is a trial-and-error process and mayrequire experimentation.

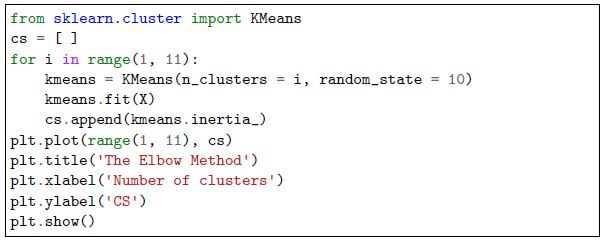

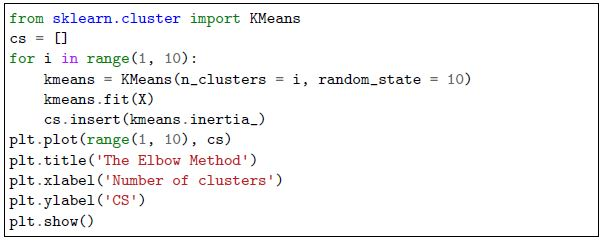

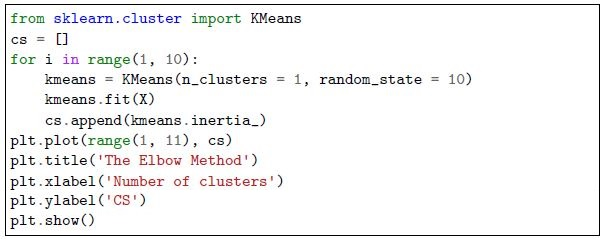

Q18MCQ3 marks

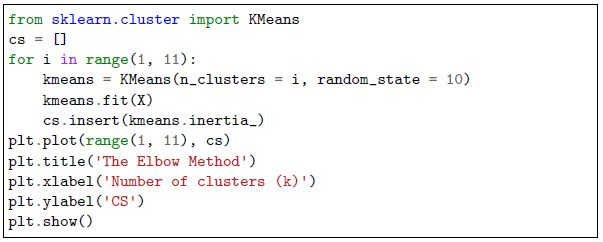

Which of the following code snippet can correctly plot the elbow graph for feature matrix X (k value is taken from 1 to 10)?

Q19MCQ3 marks

Increasing the model’s complexity to fit the training data more closely.
Adding a stronger regularization term to the loss function, discouragingcomplex models.
Making the model more capable to learn more complex behaviour.
Adjusting the learning rate to control convergence speed.

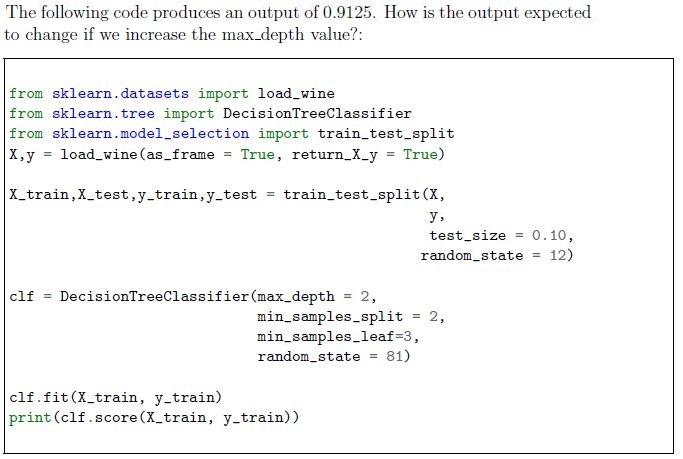

Q20MCQ4 marks

Output score is likely to increase.
Output score is likely to decrease.
Output score may increase or decrease.
Output score will remain the same.

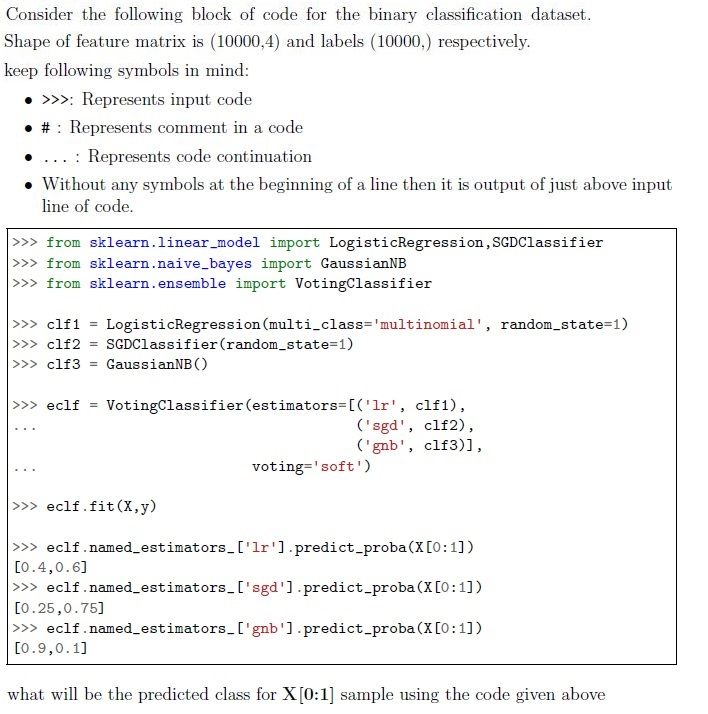

Q21MCQ4 marks

Q22MCQ4 marks

Above code uses bootstrapping to generate samples for each base classifier.
model will be tested on out of the bags samples.
Due to weights=’distance’, each base KNN classifier will treat all neighborsequally in terms of voting power.
The ensemble will consist of 3 base KNN classifiers.
None of these

Q23MSQ2 marksselect all that apply

Consider a dataset representing various attributes of red wine, loaded into a Pandas DataFrame named data using the following code: question figure

Consider a dataset representing various attributes of red wine, loaded into a Pandas DataFrame named data using the following code: Suppose we are interested in extracting the value of the chlorides attribute for the third sample in the dataset (2nd by index). Which of the following expressions correctly achieves this? chlorides is at the 4th index of columns.

data.chlorides[2]
data[’chlorides’][2]
data[2][4]
data.iloc[2, 4]

Q24MSQ2 marksselect all that apply

It applies lasso penalty.
The training may terminate after 499 iterations or lesser
the classifier represents a perceptron model
The classifier’s model parameters will initialized with parameters learnt fromprevious call to fit() function, if the same object is trained/fitted multiple times on new data.

Q25MSQ2 marksselect all that apply

Which of the following observations warrant use of SGD model?

The data set size is 1000 GB.
The model has to be trained in non-iterative manner.
The model must be a decision tree.
The model must be a logistic regressor.
None of these

Q26MSQ2 marksselect all that apply

Q27MSQ2 marksselect all that apply

‘poly’,
‘lasso’
‘rbf’,
‘scale’

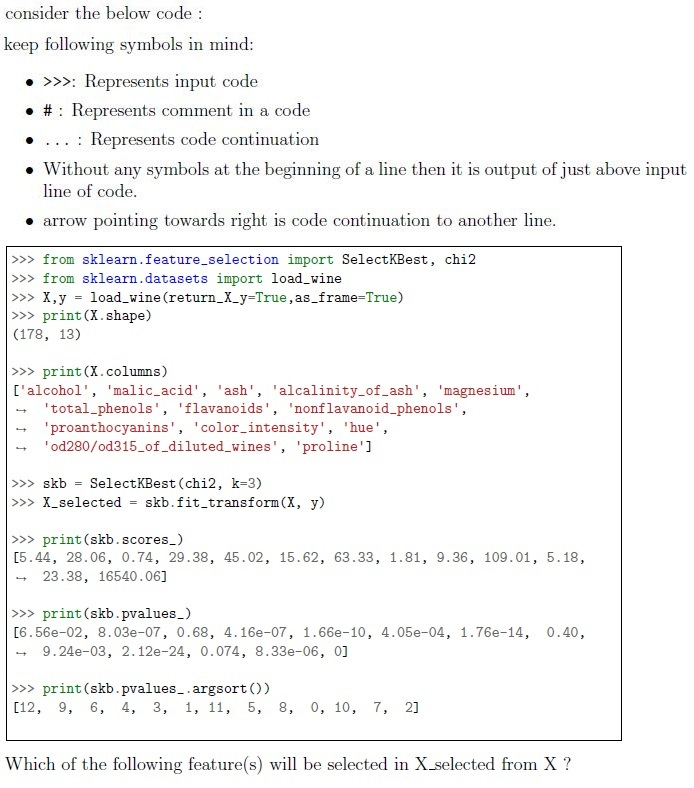

Q28MSQ3 marksselect all that apply

malic_acid
magnesium
flavanoids
proanthocyanins
color_intensity
proline

Q29MSQ3 marksselect all that apply

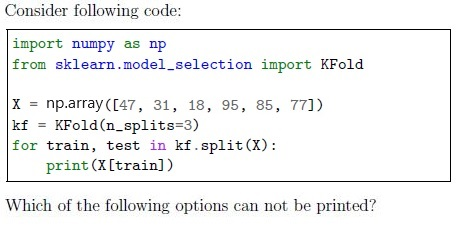

Q30MSQ3 marksselect all that apply

[47, 31, 18, 95, 77]
[47, 31, 18 ]
[31, 41, 18, 95, 85, 77]
[31, 41, 85, 31]
[18, 95, 85, 77]
[47, 31, 18, 85]
None of these

Q31MSQ3 marksselect all that apply

When using a Support Vector Classifier (SVC) in scikit-learn with different values of the regularization parameter (C), how does the complexity of the decision boundary change? Select all correct statements:

Smaller values of C result in a more complex decision boundary.
Larger values of C result in a more complex decision boundary.
The decision boundary becomes simpler with increasing values of C.
Very large values of C may lead to overfitting.

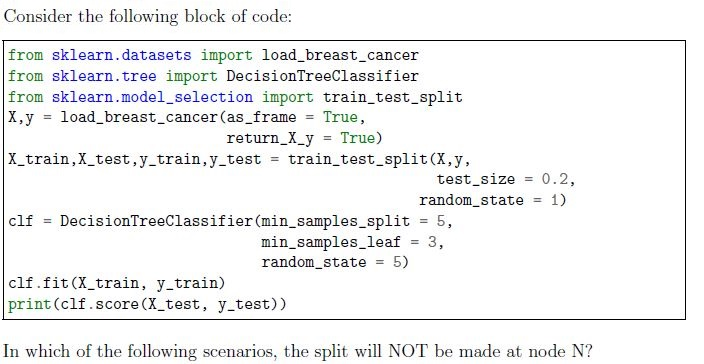

Q32MSQ4 marksselect all that apply

Number of samples at node N = 10. If it is split, it will result in 2 nodes in theleft child and 8 nodes in the right child.
Number of samples at node N = 6. If it is split, it will result in 3 nodes in the leftchild and 3 nodes in the right child.
Number of samples at node N = 12. If it is split, it will result in 5 nodes in theleft child and 7 nodes in the right child.
Number of samples at node N = 4. If it is split, it will result in 3 nodes in the leftchild and 1 node in the right child.

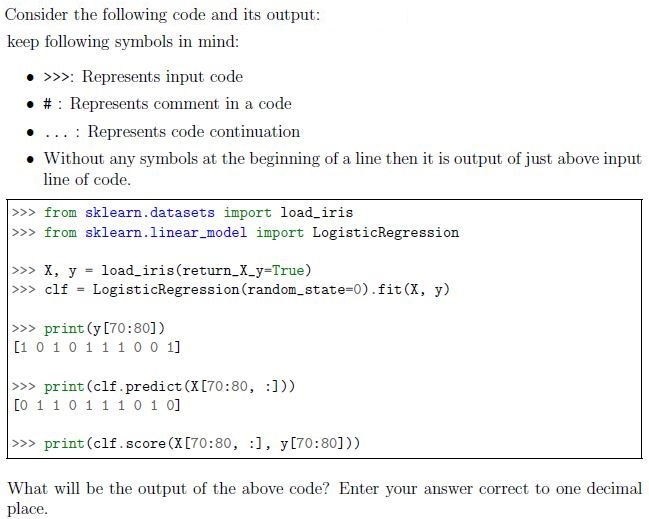

Q33SA3 marks

Your numeric answer:

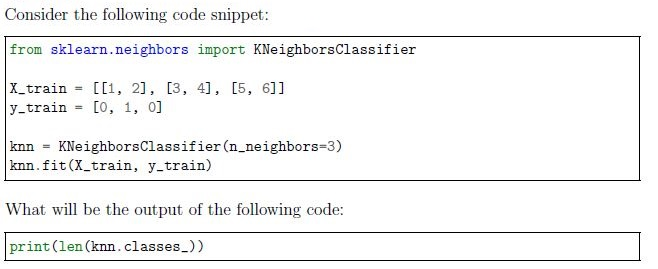

Q34SA3 marks

Your numeric answer:

Q35SA2 marks

Your numeric answer:

Q36SA4 marks

Your numeric answer:

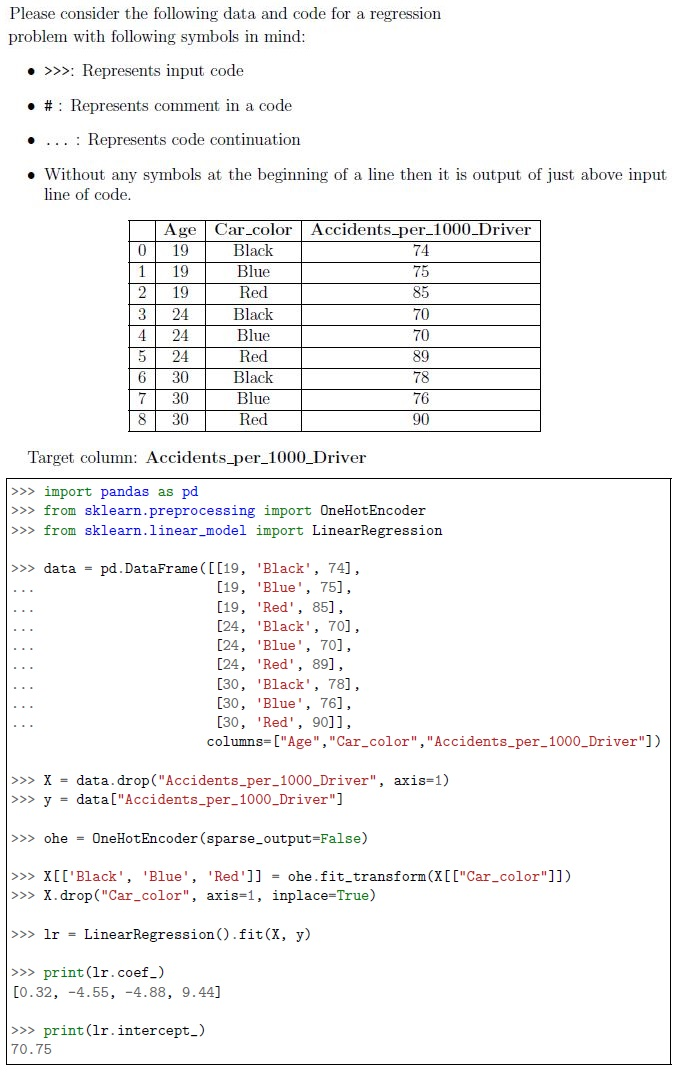

Comprehension passage - the questions below it refer to this

Based on the above data, answer the given subquestions. question figure

Q37SA3 marks

How many Accidents per 1000 Driver happens for Age 25 and driving blue car ?

Your numeric answer:

Q38MSQ2 marksselect all that apply

To improve the given model which of the following preprocessing step you suggest?

StandardScaler()
OrdinalEncoder()
MinMaxScaler()
LabelEncoder()

Answer key

Q1 (MCQ, 2 marks): B
Q2 (MCQ, 2 marks): D
Q3 (MCQ, 2 marks): B
Q4 (MCQ, 2 marks): A
Q5 (MCQ, 2 marks): C
Q6 (MCQ, 2 marks): A
Q7 (MCQ, 2 marks): B
Q8 (MCQ, 2 marks): B
Q9 (MCQ, 2 marks): D
Q10 (MCQ, 2 marks): D
Q11 (MCQ, 2 marks): B
Q12 (MCQ, 2 marks): C
Q13 (MCQ, 3 marks): B
Q14 (MCQ, 3 marks): B
Q15 (MCQ, 3 marks): A
Q16 (MCQ, 3 marks): C
Q17 (MCQ, 3 marks): D
Q18 (MCQ, 3 marks): C
Q19 (MCQ, 3 marks): C
Q20 (MCQ, 4 marks): A
Q21 (MCQ, 4 marks): B
Q22 (MCQ, 4 marks): E
Q23 (MSQ, 2 marks): A, B, D
Q24 (MSQ, 2 marks): B, D
Q25 (MSQ, 2 marks): A, D
Q26 (MSQ, 2 marks): A, C
Q27 (MSQ, 2 marks): A, C
Q28 (MSQ, 3 marks): C, E, F
Q29 (MSQ, 3 marks): A, C, D
Q30 (MSQ, 3 marks): A, B, C, D
Q31 (MSQ, 3 marks): B, D
Q32 (MSQ, 4 marks): A, D
Q33 (SA, 3 marks): 0.6
Q34 (SA, 3 marks): 1
Q35 (SA, 2 marks): 2
Q36 (SA, 4 marks): 500
Q37 (SA, 3 marks): 73 to 75
Q38 (MSQ, 2 marks): A, C

Concepts this paper tests

Auto-generated summary from the source site. Handy as a checklist; the lessons above explain each idea from scratch.

Here’s a structured summary of core topics, concepts, principles, and equations essential for the Diploma Level: Machine Learning Practice (Computer-Based Exam). The exam covers Pandas, scikit-learn, ML algorithms, preprocessing, model evaluation, hyperparameter tuning, and clustering. --- ---

1. Core Topics & Concepts

A. Data Preprocessing

StandardScaler
- Standardizes features to have mean = 0 and std = 1.
- Formula:

z = \frac{x - \mu}{\sigma}

Why? Critical for distance-based algorithms (e.g., KNN, SVM, K-Means).

Example:

from sklearn.preprocessing import StandardScaler
ss = StandardScaler()
scaled_data = ss.fit_transform(data)

One-Hot Encoding (OneHotEncoder)

Converts categorical features into binary columns.
Avoids ordinal bias (unlike LabelEncoder).

Example:

from sklearn.preprocessing import OneHotEncoder
ohe = OneHotEncoder(sparse_output=False)
encoded = ohe.fit_transform(df[['category']])

Feature Selection (SelectKBest)

Selects top k features based on statistical tests (e.g., chi2, f_classif).

Example:

from sklearn.feature_selection import SelectKBest, chi2
skb = SelectKBest(chi2, k=3)
X_selected = skb.fit_transform(X, y)

Train-Test Split

Splits data into training and testing sets.

Example:

from sklearn.model_selection import train_test_split
X_train, X_test, y_train, y_test = train_test_split(X, y, test_size=0.2, random_state=42)

B. Supervised Learning

Linear Regression
- Predicts continuous output using linear relationship:

y = \beta_0 + \beta_1 x_1 + \dots + \beta_n x_n

Coefficients (coef_) and intercept (intercept_) are learned during training.

Ridge Regression (L2 Regularization)
- Penalizes large coefficients to prevent overfitting.
- Loss function:

\text{MSE} + \alpha \sum_{i=1}^n \beta_i^2

Hyperparameter: alpha (higher alpha → more regularization).

Decision Trees
- Splits data based on feature thresholds to minimize impurity (Gini/entropy).
- Hyperparameters:
  - max_depth: Maximum tree depth.
  - min_samples_split: Minimum samples required to split a node.
  - min_samples_leaf: Minimum samples required in a leaf.
- Overfitting Risk: Deeper trees → higher variance.

Support Vector Machines (SVM)
- Finds the optimal hyperplane to separate classes.
- Kernel Trick: Transforms data into higher dimensions (linear, poly, rbf).
- Regularization Parameter (C):
  - Small C → wider margin (simpler model).
  - Large C → narrower margin (complex model, risk of overfitting).

k-Nearest Neighbors (KNN)
- Classifies based on majority vote of k nearest neighbors.
- Distance Metrics: Euclidean, Manhattan.
- Why Scale? Features must be normalized to avoid bias toward high-magnitude features.

Stochastic Gradient Descent (SGD)
- Optimizes loss functions iteratively (used in SGDClassifier, SGDRegressor).
- Variants:
  - Full Batch: Uses entire dataset per update.
  - Mini-Batch: Uses random subset (mini-batch) per update.
  - Stochastic: Uses 1 sample per update.
- Loss Functions:
  - hinge (SVM), log_loss (logistic regression), squared_error (regression).
- Regularization:
  - l1 (Lasso), l2 (Ridge), elasticnet (combination).
- Hyperparameters:
  - alpha: Learning rate.
  - penalty: Regularization type.
  - max_iter: Maximum epochs.

Neural Networks (MLPClassifier/MLPRegressor)
- Activation Functions:
  - Hidden layers: relu, tanh, logistic.
  - Output layer:
    - Regression: identity.
    - Classification: logistic (binary) or softmax (multiclass).
- Hyperparameters:
  - hidden_layer_sizes: Number of neurons per layer (e.g., (100, 50)).
  - activation: Activation function for hidden layers.
  - solver: Optimization algorithm (adam, sgd).

C. Model Evaluation

Regression Metrics
- R² (R-squared):
  - Range: [0, 1] (higher = better).
  - Formula:

R^2 = 1 - \frac{\text{SS}_{\text{res}}}{\text{SS}_{\text{tot}}}

RMSE (Root Mean Squared Error):
- Lower = better.
- Formula:

\text{RMSE} = \sqrt{\frac{1}{n} \sum_{i=1}^n (y_i - \hat{y}_i)^2}

MAE (Mean Absolute Error):
- Lower = better.
- Formula:

\text{MAE} = \frac{1}{n} \sum_{i=1}^n |y_i - \hat{y}_i|

Classification Metrics
- Accuracy: (TP + TN) / (TP + TN + FP + FN).
- Precision: TP / (TP + FP).
- Recall: TP / (TP + FN).
- F1-Score: Harmonic mean of precision and recall.

Cross-Validation
- k-Fold CV: Splits data into k folds; trains on k-1 folds, tests on 1.
- Leave-One-Out (LOO): Extreme case of k-Fold where k = n_samples.
- Example:
```
from sklearn.model_selection import cross_val_score, KFold
kf = KFold(n_splits=5)
scores = cross_val_score(model, X, y, cv=kf)
```

Grid Search & Random Search
- GridSearchCV: Exhaustively searches all hyperparameter combinations.
- RandomizedSearchCV: Samples random combinations (faster for large spaces).
- Example:
```
from sklearn.model_selection import GridSearchCV
param_grid = {'C': [0.1, 1, 10], 'kernel': ['linear', 'rbf']}
grid = GridSearchCV(SVC(), param_grid, cv=5)
grid.fit(X, y)
```

D. Unsupervised Learning

Clustering Methods
- Centroid-Based (e.g., K-Means):
  - Assigns points to nearest centroid; updates centroids iteratively.
- Density-Based (e.g., DBSCAN):
  - Groups points in dense regions; marks outliers.
- Connectivity-Based (e.g., Hierarchical Clustering):
  - Builds a tree of clusters (agglomerative/divisive).

Elbow Method (for K-Means)

Plots inertia (within-cluster sum of squares) vs. k to find optimal k.

Example:

inertias = []
for k in range(1, 11):
    kmeans = KMeans(n_clusters=k).fit(X)
    inertias.append(kmeans.inertia_)
plt.plot(range(1, 11), inertias)

E. Ensemble Methods

Random Forest
- Ensemble of decision trees; reduces variance via bagging.
- Hyperparameters:
  - n_estimators: Number of trees.
  - max_depth: Depth of each tree.

Bagging (Bootstrap Aggregating)
- Trains multiple models on bootstrapped samples; averages predictions.
- Example: BaggingClassifier with KNeighborsClassifier.

F. Dimensionality Reduction

Feature Selection vs. Extraction
- Selection: Chooses subset of features (e.g., SelectKBest).
- Extraction: Transforms features (e.g., PCA).

G. Pandas Operations

GroupBy
- Groups data by a column and applies aggregations (e.g., mean, sum).
- Example:
```
df.groupby('Category')['Price'].mean()
```

Data Access
- df['column'], df.column, df.iloc[row, col], df.loc[row_index, 'column'].

2. Key Equations

Concept	Equation
Standard Scaling	$z = \frac{x - \mu}{\sigma}$
R² Score	$R^2 = 1 - \frac{\text{SS}_{\text{res}}}{\text{SS}_{\text{tot}}}$
RMSE	$\sqrt{\frac{1}{n} \sum (y_i - \hat{y}_i)^2}$
Ridge Regression Loss	$\text{MSE} + \alpha \sum \beta_i^2$
Linear Regression	$y = \beta_0 + \beta_1 x_1 + \dots + \beta_n x_n$
SVM Margin (Hard)	$\min \frac{1}{\\|w\\|}$ s.t. $y_i(w \cdot x_i + b) \geq 1$
KNN Distance (Euclidean)	$\sqrt{\sum_{i=1}^n (x_i - y_i)^2}$
Decision Tree Gini Impurity	$1 - \sum p_i^2$

Graph 2: Unsupervised Learning

Graph 3: Model Evaluation & Hyperparameter Tuning

Graph 4: scikit-learn Key Classes

4. Exam Tips

Pandas:
- Know groupby, iloc, loc, and column access methods.
Preprocessing:
- Always scale for distance-based models (KNN, SVM, K-Means).
- Use OneHotEncoder for categorical features (avoid LabelEncoder for non-ordinal data).
Model Selection:
- Overfitting: Prune trees (max_depth, min_samples_leaf), use regularization (Ridge/Lasso).
- Underfitting: Increase model complexity (deeper trees, more features).
SGD:
- warm_start=True retains weights between .fit() calls.
- hinge loss → SVM; log_loss → logistic regression.
Clustering:
- K-Means: Needs scaled data; use the elbow method for k.
Neural Networks:
- Output layer activation:
  - Regression: identity.
  - Binary classification: logistic.
  - Multiclass: softmax.
Hyperparameter Tuning:
- GridSearchCV for small spaces; RandomizedSearchCV for large spaces.
